Chevron Phillips Company,  Baytown, TX, Sutphen Aerial

WHEEL BASE: 277 ½”

TRAVEL HEIGHT: 11’ – 7”

TRAVEL LENGTH: 51’

CHASSIS

  • Sutphen Monarch Heavy-Duty Custom Chassis, 53” Extended Cab with a 10” Raised Roof
  • Four-Door, Four-Person Cab
  • 10” Double Domex Frame Rails (110K PSI)
  • Front Axle and Suspension 25,500 lbs
  • Rear Axle and Suspension 62,000 lbs
  • Engine: Cummins X 15, 600-hp
  • Alternator: Delco Remy, 420 AMP
  • Transmission: Allison Gen 5, EVS 4000

PUMP

  • Waterous CRIU-2C21 4,000 GPM
  • Discharges: (3) 6” Passenger Side; (1) 2 ½” Passenger Side; (1) 2 ½” Driver Side
  • 800-Gallon Foam Tank
  • Foam System: Waterous Ultrafoam

BODY

  • Sutphen
  • Huck Bolted #304 Stainless Steel
  • Hinged Compartment Door
  • Over 183 cu. ft. of Total Compartment Space
  • SPI-3: Left High/ Right Intermed

ADDITIONAL EQUIPMENT

  • 12” Polished Stainless Steel Bumper Extension
  • Federal Q2B Siren, Grille Mount
  • Hannay Electric Cord Reel, 150’ (1)
  • 6-kW Smart Power Generator
  • Camera System Brigade Backeye 360
  • Thermal Camera in Bucket
  • SCBA Bottle Compartments (7)
  • FRC ACT 3-Station Intercom System
  • FRC Spectra Brow Light
  • FRC Spectra Tele Lights
  • FRC 900 LED Scene Lights
  • Whelen Freedom IV 72” 12 Module LED Lightbar
  • Rigid Boom Tracking Light

MONITOR

  • Drive Side Monitor: TFT Monsoon 2,000-gpm w/ VUM
  • Officer Side Monitor: TFT Monsoon 2,000 gpm w/ VUM



Author

    See also  Elkhart (IN) Fire Department Gets SPH 100 Aerial Platform from Sutphen

    Topics

    Newsletter

    Subscribe to Our Monthly Newsletter

    Get more from The Rig directly to your inbox by subscribing below.

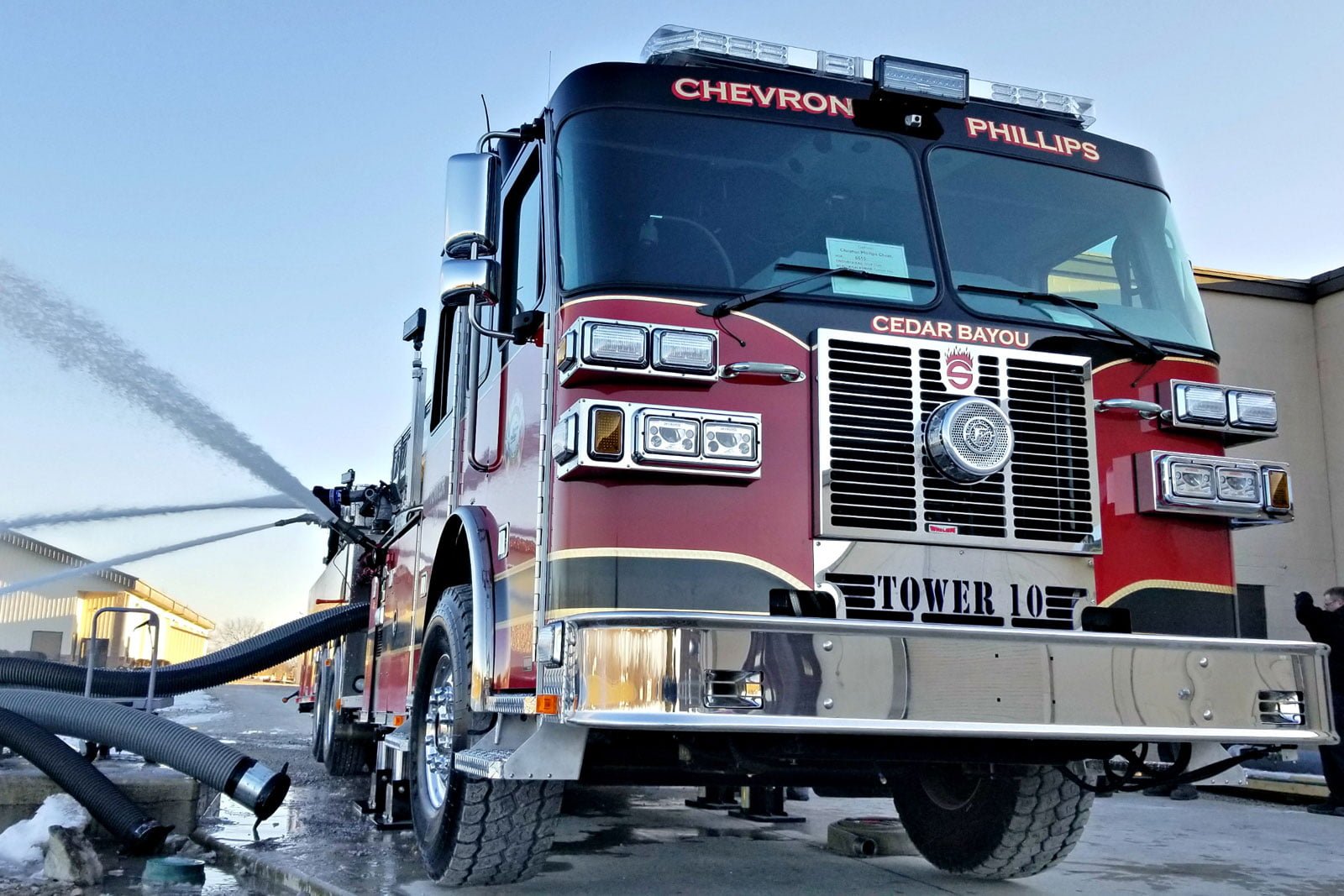

    Chevron Phillips Company,  Baytown, TX, recently took delivery of this Sutphen aerial fire apparatus equipped for industrial firefighting.
