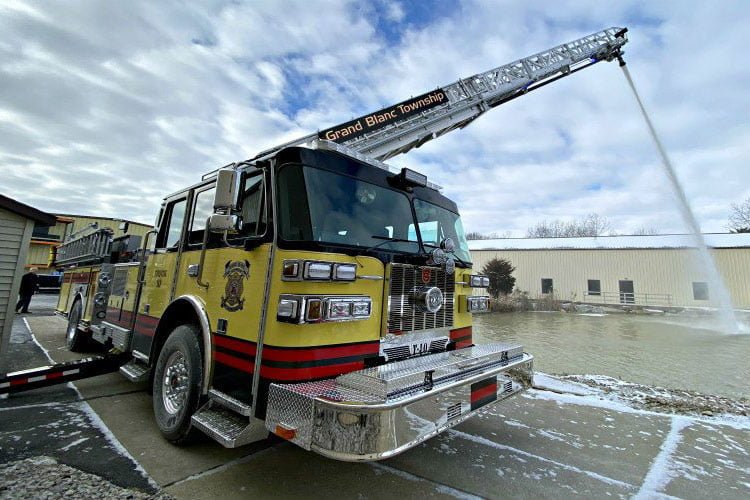

Grand Blanc (MI) Fire Department Sutphen SL75

WHEELBASE: 221”

TRAVEL HEIGHT: 10’ ½”

TRAVEL LENGTH: 41’ ¼”

CHASSIS:

  • Sutphen Monarch Heavy-Duty Custom Chassis, 62” Extended Cab
  • Four-Door, Six-Person Cab
  • 10” Double Domex Frame Rails (110K psi)
  • Front Axle and Suspension 23,000 lbs
  • Rear Axle and Suspension 31,000 lbs
  • Engine: Cummins L 9, 450 hp
  • Alternator: Leece Neville, 320 amp
  • Transmission: Allison Gen 5, EVS3000

PUMP:

  • Hale Qmax 2,000-gpm Single-Stage Pump
  • Discharges: (2) 2 ½” Left, (1) 4” Right, (1) 2 ½” Right, (1) 2 ½” Upper Left, (1) 1 ½” Front Bumper
  • Crosslay: (2) 2” w/ 1 ½” Swivel
  • 500-Gallon Water Tank

Related Content


BODY:

  • Extruded Aluminum
  • ROM Roll-Up Compartment Doors
  • 75 cu. ft. Total Compartment Space
  • Alco-Lite Ladder Package (PEL-24 24’ 2-Section & REL-35 35’ 3-Section & (2) PRL-16 16’ Roof & (2) 10’ Folding)
  • Body: SAA 4 Left High/ Right Intermed/ Trans

ADDITIONAL EQUIPMENT:

  • 24” Polished Stainless Steel Bumper
  • Federal Q2B Siren, Grille Mount
  • Backup Camera
  • Smart Power Generator
  • FRC Spectra LED 12V Brow Light
  • FRC Spectra Max 240V LED Scene Lights
  • Whelen Freedom 4 LED Lightbar
  • Whelen 900 LED Lights

For more information, visit www.sutphen.com.
