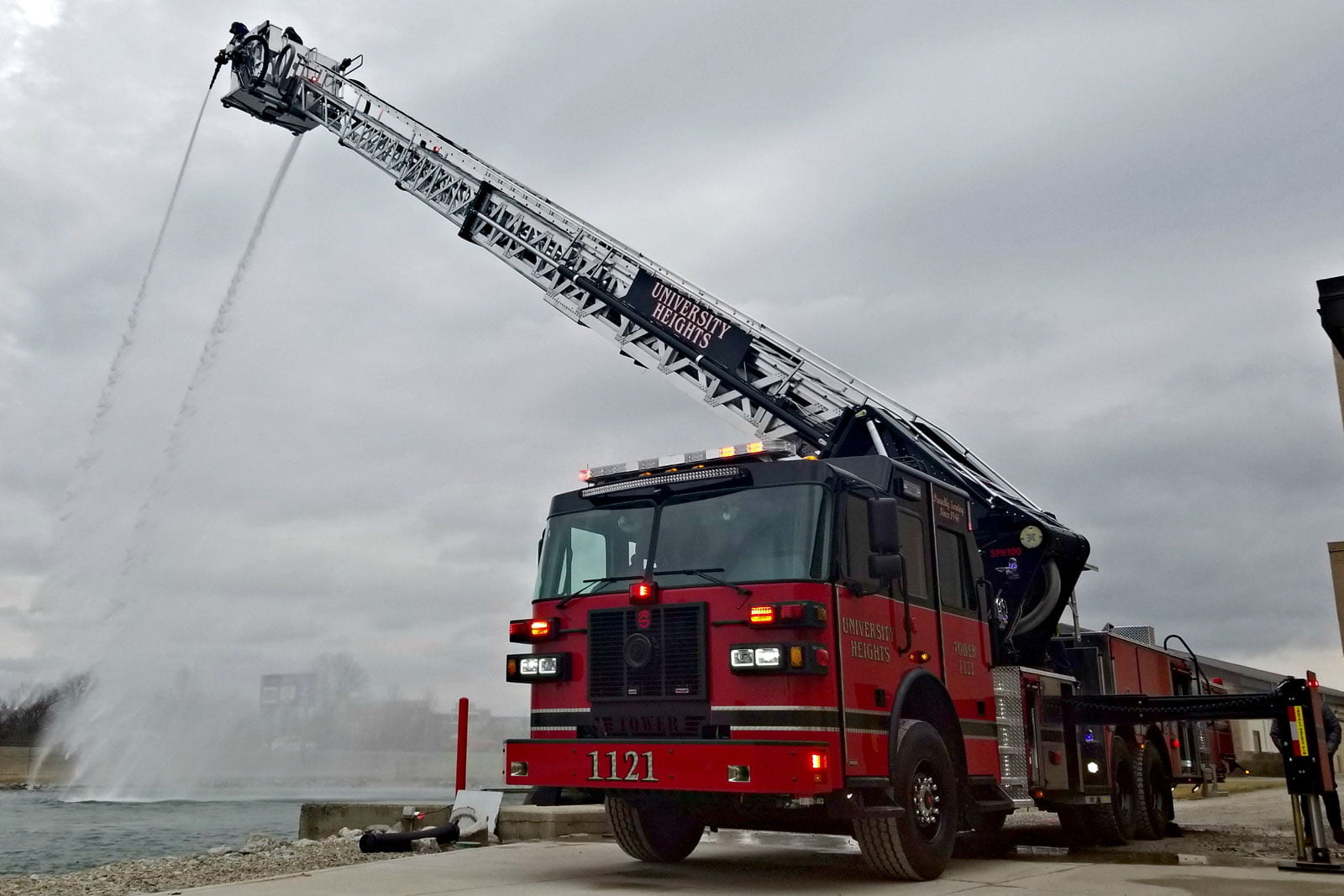

University Heights (OH) Fire Department SPH100 Midmount Aerial
SPH100 Aerial Platform (HS-6460)
WHEELBASE: 236”
TRAVEL HEIGHT: 10’ – 6”
TRAVEL LENGTH: 46’ – 7”
CHASSIS
- Sutphen Monarch Heavy-Duty Custom Chassis, 62” Extended Cab with a 10” Raised Roof
- Four-Door, Six-Person Cab
- 10” Double Domex Frame Rails (110K PSI)
- Front Axle and Suspension 23,000 lbs
- Rear Axle and Suspension 52,000 lbs
- Engine: Cummins X 12 500-hp
- Alternator: Leece Neville, 320 AMP
- Transmission: Allison Gen 5, EVS4000
PUMP
- Hale Qmax 2,000-gpm, single-stage pump
- Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right
- Crosslay: (1) 2 ½” w/ 2 ½” Swivel, (2) 2” w/ 1 ½” Swivel
- 500-Gallon Water Tank
BODY
- Sutphen
- ROM Roll-Up Compartment Doors
- 244.07 cu. ft. Total Compartment Space
- Alco-Lite Ladder Package (16’, 16’ – extra wide, 24’ – 2 sec, 24’ – 2 sec, 35’ – 2 sec & 10’ Folding)
- Ladder Chutes
- Body: SPH-7, Left 56”H/Right 48”H
ADDITIONAL EQUIPMENT
- 12” formed steel channel, bumper
- Federal Q2B Siren, Grille Mount
- Camera System, FRC, Inview 360
- Rigis 54” 12-V LED Brow Light
- Whelen Freedom LED Lightbar
- FRC Spectra 12-V LED Scene Lights
