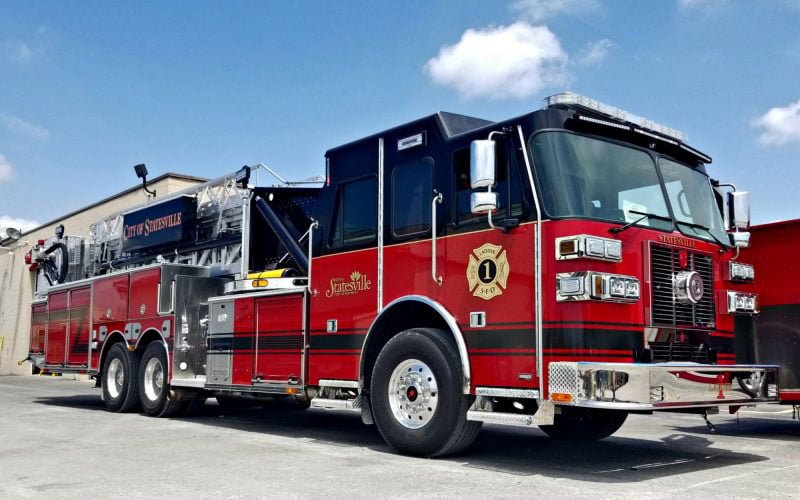

City of Statesville (NC) Fire Department Sutphen SPH 100 Aerial

WHEEL BASE: 236”

TRAVEL HEIGHT: 11’ 6”

TRAVEL LENGTH: 46’ 7”

CHASSIS

  • Sutphen Monarch Heavy-Duty Custom Chassis, 62” Extended Cab with a 10” Raised Roof
  • Four-Door, Six-Person Cab
  • 10” Double Domex Frame Rails (110K PSI)
  • Front Axle and Suspension 23,000 lbs
  • Rear Axle and Suspension 52,000 lbs
  • Engine: Cummins X 12, 500-hp
  • Alternator: Leece Neville, 320-Amp
  • Transmission: Allison Gen 5, EVS 4000

PUMP

  • Hale Qmax 2,000-gpm Single-Stage Pump
  • Discharges: (2) 2 ½” Left; (1) 3” Right; (1) 2 ½” Right
  • Crosslays: (1) 2 ½”, 2 ½” Swivel & (2) 2” Crosslay with 1 ½” Swivel
  • 300-Gallon Water Tank

BODY

  • Sutphen Huck Bolted #304 Stainless Steel
  • Amdor Roll-Up Compartment Door
  • Over 283 cu. ft. of Total Compartment Space
  • Alco-Lite Ladder Compliment (115’: 14’, 16’, 16’, 24’ 2-Section, 35’ 2-Section & 10’ F)
  • SPH-3: Left 56” High/ Right 56” High

ADDITIONAL EQUIPMENT

  • 12” Polished Stainless Steel Bumper Extension
  • Federal Q2B Siren, Grille Mount
  • Hannay Electric Cord Reel, 150’ (1)
  • 10-kW Harrison Generator
  • Brigade, Backeye 360 Camera System
  • Whelen Freedom IV 72” (12) LED Lightbar
  • Firetech 12-V LED Brow
  • FRC Spectra 12V LED Scene
  • FRC Spectra 240 LED Tele
  • FRC Spectra 900 12-V LED

MONITOR

  • Drive Side Monitor: Akron 3482 Stream Master2, Electric, 1,250-gpm w/ Akron 5177 Electric Nozzle
  • Officer Side Monitor: Akron 3483 Stream Master2, Manual 1,250-gpm

Author

    See also  Two Sutphen Customers Running All Sutphen Engines, Aerial in Fleets

    Topics

    The Statesville (NC) Fire Department recently took delivery of this Sutphen SPH 100 aerial built on a Sutphen Monarch custom chassis.
