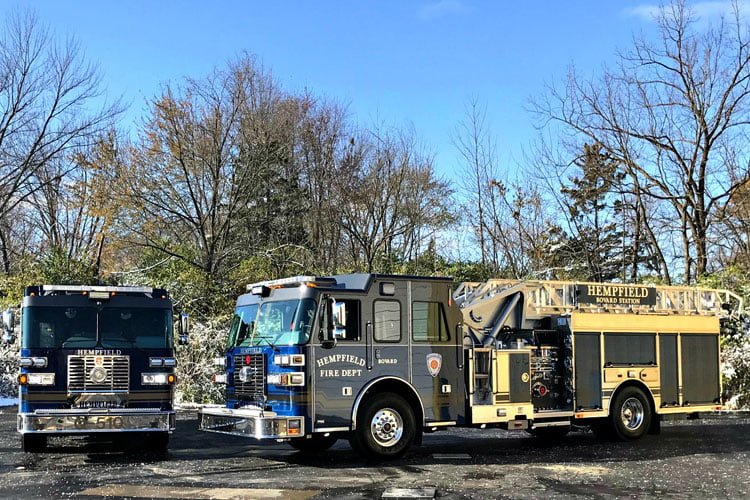

Hempfield Township (PA) Sutphen SL75 Midmount

Hempfield Township (PA) Sutphen SL75 Midmount

WHEELBASE: 221”

TRAVEL HEIGHT: 10’ – 0 ½”

TRAVEL LENGTH: 40’ – 6 ¼”

CHASSIS

  • Sutphen Monarch Heavy Duty-Custom Chassis, 62” Extended Cab with a 10” Raised Roof
  • Four-Door, Six-Person Cab
  • 10” Frame Rails (50K PSI)
  • Front Axle and Suspension 23,000 lbs
  • Rear Axle and Suspension 31,000 lbs
  • Engine: Cummins L 9, 450 HP
  • Alternator: Niehoff, 360 AMP
  • Transmission: Allison Gen 5, EVS3000

PUMP/WATER DELIVERY

  • Hale Qmax 2,000-gpm, Single Stage
  • Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 3” Front/Right of Main Hosebed, (1) 1 ½” Front Bumper
  • Crosslays: (2) 2” Valve-Piping with 1 ½” Swivel
  • Monitor: TFT Y5-E11A-L Typhoon Elec w/ M-ERP-1500 Nozzle
  • FoamPro 2001 w/ Flush 2.6 gpm
  • 30-Gallon Foam Tank
  • 500-Gallon Water Tank

BODY

  • Sutphen
  • Huck Bolted #304 Stainless Steel
  • Amdor Roll-Up Compartment Doors
  • Over 192 cu. ft. Total Compartment Space
  • Alco-Lite Quint Ladder Compliment (85’: 16R’, 24’ 2-Section, 35’ 3-Section & 10’F)
  • Body: SAA-4 Left High / Right Intermed / Trans

OPTIONAL EQUIPMENT

  • 18” Polished Stainless Steel, Bumper Extension
  • Federal Q2B Siren, Grille Mount
  • Brigade Backeye 360, Camera System
  • Hannay Electric Cord Reel, 150’ (1)
  • 6-kW Harrison Generator
  • FRC ACT 2-Station Intercom
  • Whelen Freedom 4 Lightbar
  • Whelen 900 Scene Light
  • FRC Spectra LED 12-V Brow Light
  • FRC Spectra 240-VAC LED
  • FireTech 30” LED Flood Light
